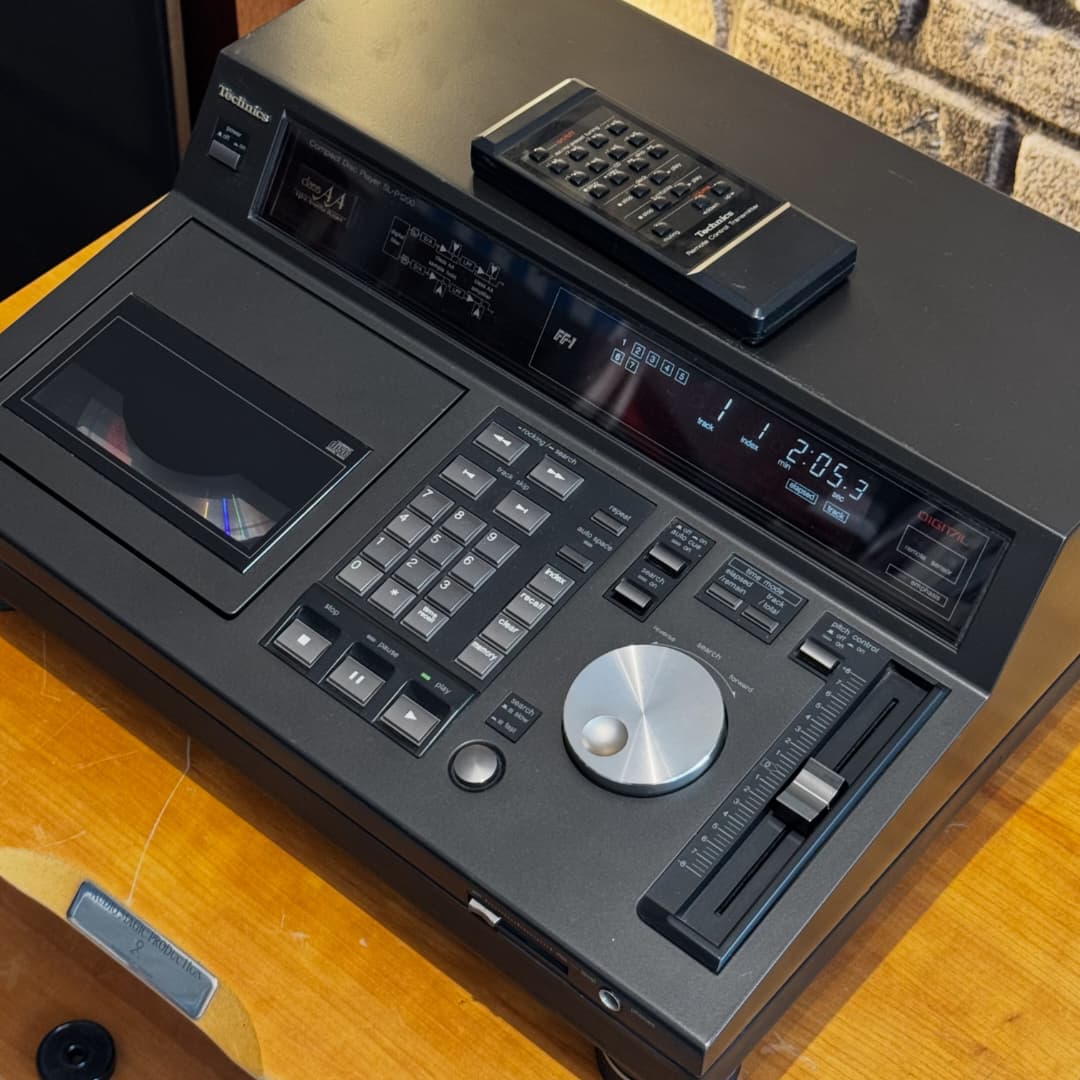

Technics SL-P1200 CD Player
The Technics SL-P1200 is a legendary, broadcast-grade top-loading CD player released in 1986. Designed to mirror the ergonomics of the iconic SL-1200 turntable, it was widely used in radio stations, DJ booths, and by audiophiles who demanded precise physical playback control. Key Audio Features Class AA Audio Circuitry: Separates voltage amplification from current drive to eliminate distortion caused by speaker load impedances, delivering highly accurate waveform reproduction. Dual-Mono Component Layout: Separate power supplies, circuit boards, and grounding paths for the digital and analog sections to completely minimize crosstalk. Heavy Anti-Vibration Construction: Built with a double-isolated chassis (heavy zinc die-cast base sitting on specialized insulator feet) to prevent acoustic feedback and physical skips in club or studio environments. Technical Specifications Digital-to-Analog Converter (DAC): Two Burr-Brown PCM54HP 16-bit linear converters. Digital Filter: High-resolution 96th-order FIR filter utilizing 2x oversampling. Laser Transport Mechanism: Technics SOALP1200 featuring a fast magnetic linear motor. Frequency Response: 4Hz to 20,000Hz with a highly flat response of ±0.1 dB. Total Harmonic Distortion (THD): Exceptionally low distortion at 0.0012% at 1 kHz. Signal-to-Noise Ratio (S/N): Clear audio separation with a spec of 106 dB or better. Dynamic Range: Clean audio headroom of 96 dB or better. Channel Separation: Excellent stereo image separation of 106 dB or better. Wow and Flutter: Completely below measurable limits. Power Consumption: Rated at 30 Watts during operation. Dimensions (W × H × D): Measures 430 mm × 168 mm × 380 mm (16-15/16" × 6-5/8" × 15"). Weight: Heavy-duty build weighing approximately 14.5 kg (32 lbs). Professional & DJ Control Features Ergonomic Top-Loading Design: Built like a console mixer rather than a standard rack unit, keeping controls easily accessible at a sloped angle. High-Speed Search & Dial (Jog Shuttle): A large aluminum wheel allowing for frame-by-frame precision cueing and scanning at variable speeds. Pitch Control Slider: Provides continuous playback speed adjustments of up to ±8% or ±12% (depending on the exact regional model variation). Direct Track/Index Access: A full numeric physical keypad for instant track skipping and precise indexing. Sub-Second Search Time: Uses a high-speed linear motor transport that can skip from Track 1 to the end of the disc in under one second. Connectivity Analog Outputs: Fixed and Variable unbalanced RCA outputs. (The upgraded SL-P1200X variant featured professional XLR balanced outputs). Digital Outputs: Early models omitted this, but mid-to-late production runs included a digital coaxial output. Headphone Jack: 1/4" (6.3mm) front-panel output with an independent analog volume slider.
The Technics SL-P1200 is a legendary, broadcast-grade top-loading CD player released in 1986. Designed to mirror the ergonomics of the iconic SL-1200 turntable, it was widely used in radio stations, DJ booths, and by audiophiles who demanded precise physical playback control.
Key Audio Features
Class AA Audio Circuitry: Separates voltage amplification from current drive to eliminate distortion caused by speaker load impedances, delivering highly accurate waveform reproduction.
Dual-Mono Component Layout: Separate power supplies, circuit boards, and grounding paths for the digital and analog sections to completely minimize crosstalk.
Heavy Anti-Vibration Construction: Built with a double-isolated chassis (heavy zinc die-cast base sitting on specialized insulator feet) to prevent acoustic feedback and physical skips in club or studio environments.
Technical Specifications
Digital-to-Analog Converter (DAC): Two Burr-Brown PCM54HP 16-bit linear converters.
Digital Filter: High-resolution 96th-order FIR filter utilizing 2x oversampling.
Laser Transport Mechanism: Technics SOALP1200 featuring a fast magnetic linear motor.
Frequency Response: 4Hz to 20,000Hz with a highly flat response of ±0.1 dB.
Total Harmonic Distortion (THD): Exceptionally low distortion at 0.0012% at 1 kHz.
Signal-to-Noise Ratio (S/N): Clear audio separation with a spec of 106 dB or better.
Dynamic Range: Clean audio headroom of 96 dB or better.
Channel Separation: Excellent stereo image separation of 106 dB or better.
Wow and Flutter: Completely below measurable limits.
Power Consumption: Rated at 30 Watts during operation.
Dimensions (W × H × D): Measures 430 mm × 168 mm × 380 mm (16-15/16" × 6-5/8" × 15").
Weight: Heavy-duty build weighing approximately 14.5 kg (32 lbs).
Professional & DJ Control Features
Ergonomic Top-Loading Design: Built like a console mixer rather than a standard rack unit, keeping controls easily accessible at a sloped angle.
High-Speed Search & Dial (Jog Shuttle): A large aluminum wheel allowing for frame-by-frame precision cueing and scanning at variable speeds.
Pitch Control Slider: Provides continuous playback speed adjustments of up to ±8% or ±12% (depending on the exact regional model variation).
Direct Track/Index Access: A full numeric physical keypad for instant track skipping and precise indexing.
Sub-Second Search Time: Uses a high-speed linear motor transport that can skip from Track 1 to the end of the disc in under one second.
Connectivity
Analog Outputs: Fixed and Variable unbalanced RCA outputs. (The upgraded SL-P1200X variant featured professional XLR balanced outputs).
Digital Outputs: Early models omitted this, but mid-to-late production runs included a digital coaxial output.
Headphone Jack: 1/4" (6.3mm) front-panel output with an independent analog volume slider.
