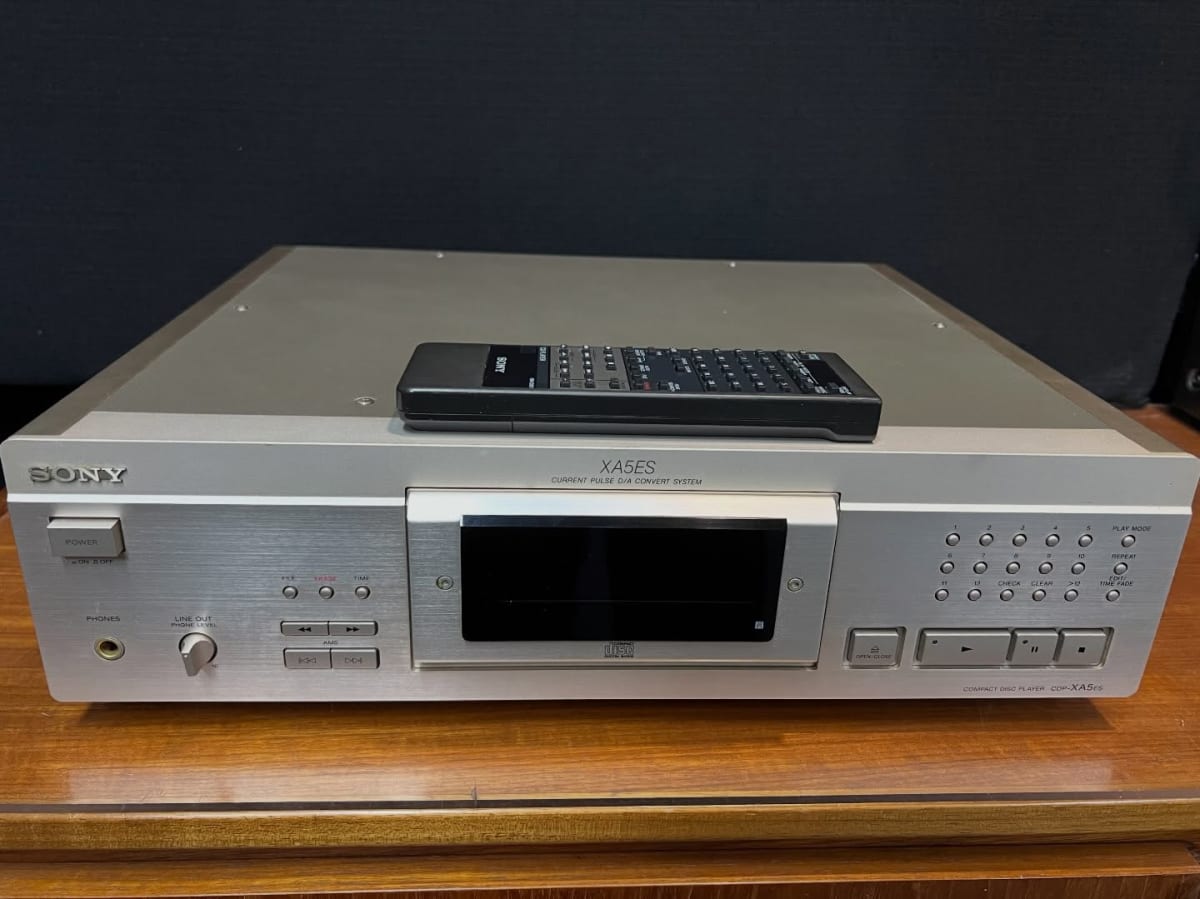

Vintage Sony CDP-XA5ES high-end compact disc player, released around 1994–1995 as part of Sony’s acclaimed ES (Elevated Standard) series.
Technical Specifications
Digital Converter: CXD2562Q
CD Mechanism: KSS-273A
Frequency Response: 2Hz to 20kHz (±0.3dB)
Dynamic Range: More than 100dB
Signal to Noise Ratio: More than 118dB
Total Harmonic Distortion: Less than 0.0017%
Channel Separation: More than 110dB
Line Output (Fixed): 2V (at 50 kilohms load)
Line Output (Variable): 2V max (at 50 kilohms load)
Digital Output (Optical): -18dBm (wavelength 660nm)
Headphone Output: 28mW max (at 32 ohms load)
Power Requirements: 100V AC, 50/60Hz (Japan domestic standard)
Power Consumption: 22W
Dimensions (W x H x D): 430 x 125 x 370 mm
Weight: 13.5 kg (29.8 lbs)
Core Audio Features

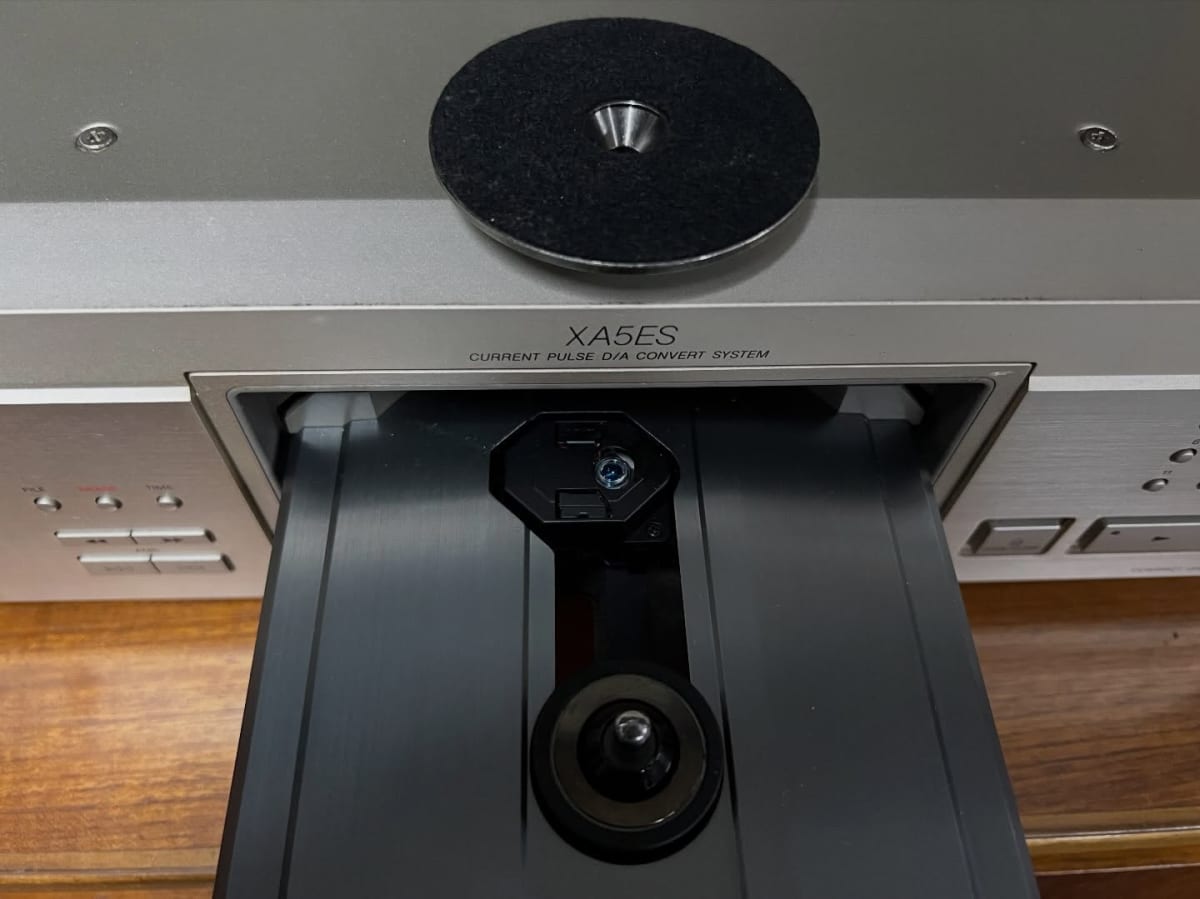

Optical Fixed-Pickup Mechanism: Rather than tracking the laser module across a spinning disc, this unique design locks the heavy optical pickup assembly in a rigid, fixed position. The spindle motor and the CD itself move laterally over the laser lens, drastically reducing vibrations and reading errors.

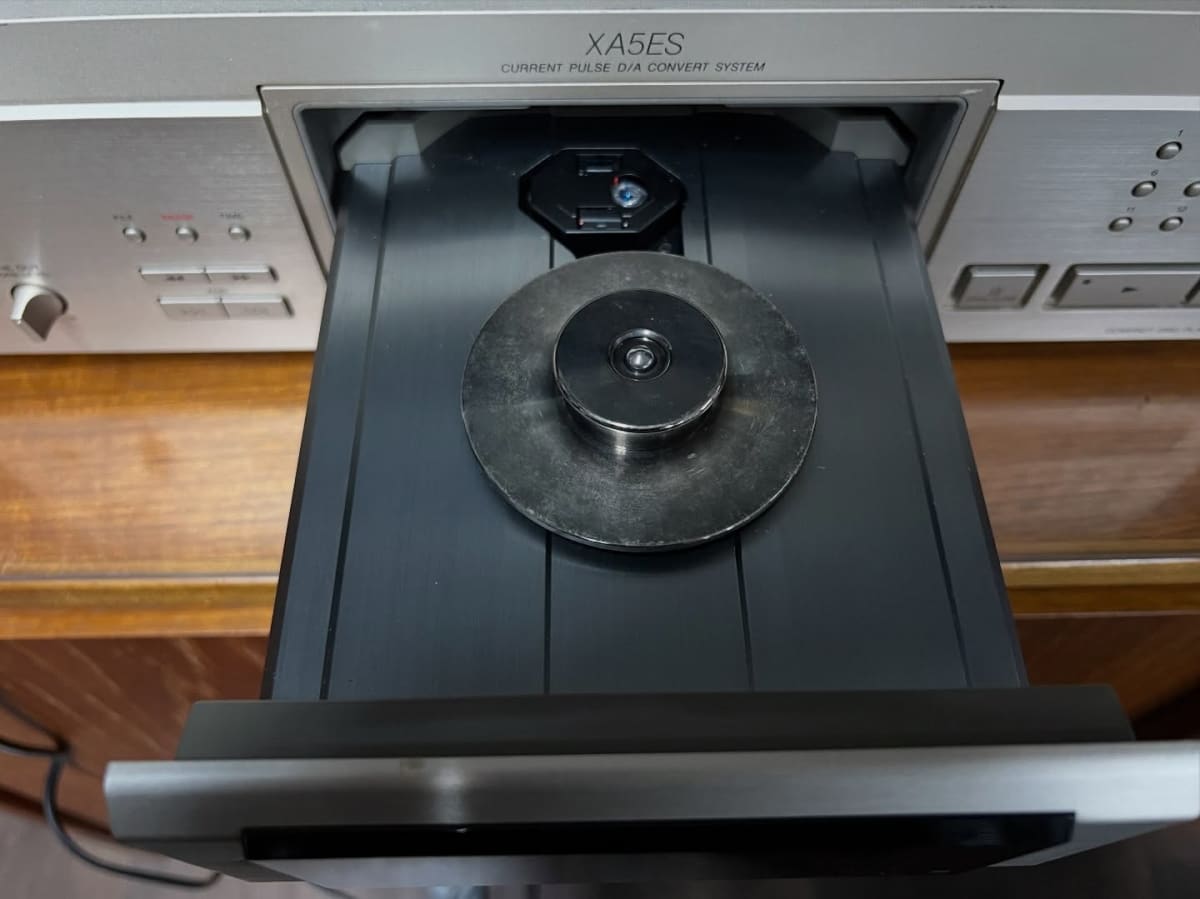

Heavy Disc Stabilizer: Utilizes a precision-machined heavy metallic clamp that rests directly on top of the compact disc. This acts as a dampening anchor to eliminate micro-vibrations and warping during high-speed rotation.
Current Pulse D/A Converter: Employs advanced internal digital-to-analog conversion architecture to eliminate voltage noise, resulting in higher clarity, wider soundstages, and pristine high frequencies.
Twin R-Core Transformers: Equipped with dual shielded R-core power transformers separated cleanly between the digital and analog stages to eliminate electromagnetic crossover interference.
Chassis Rigidity: Standard heavy Elevated Standard (ES) frame-and-beam construction with a thick aluminum faceplate and vibration-absorbing feet.
External Connectivity & Controls

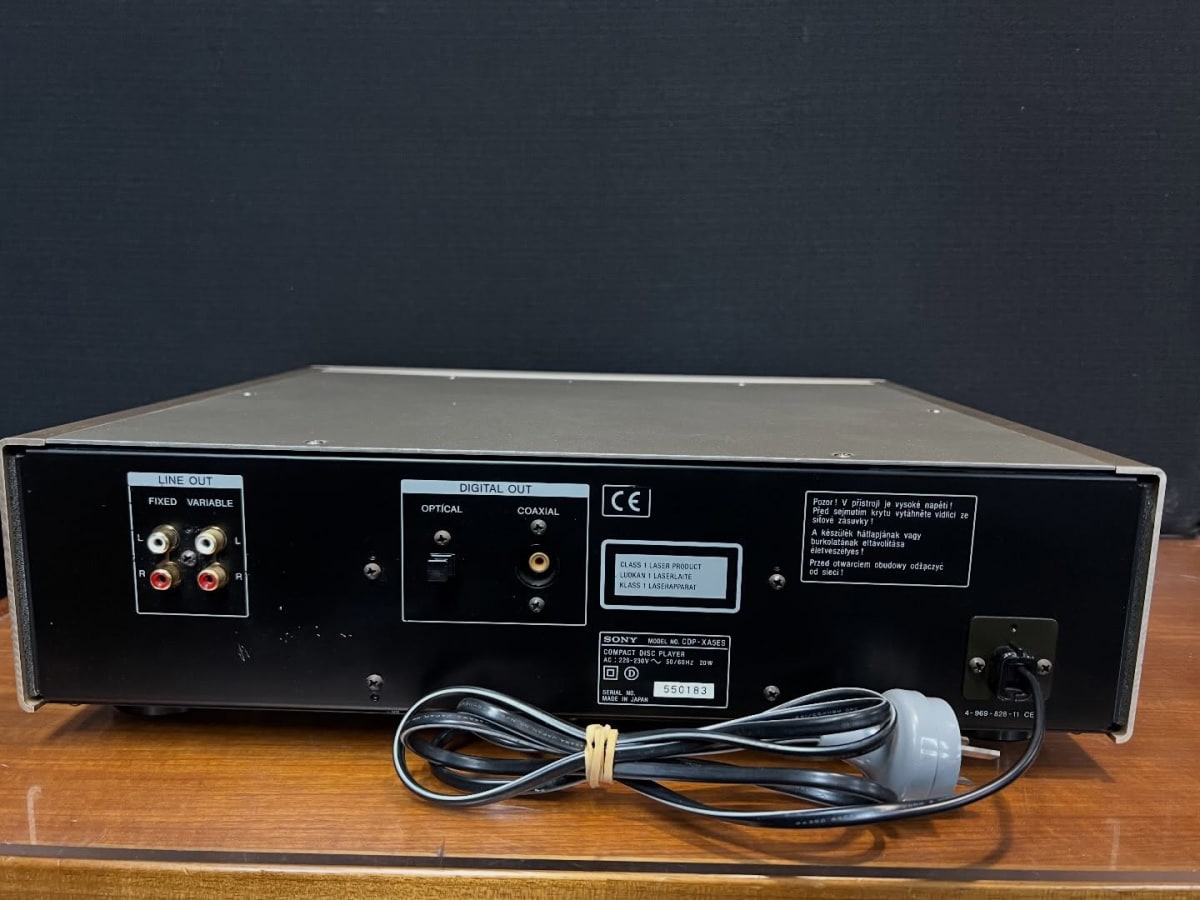

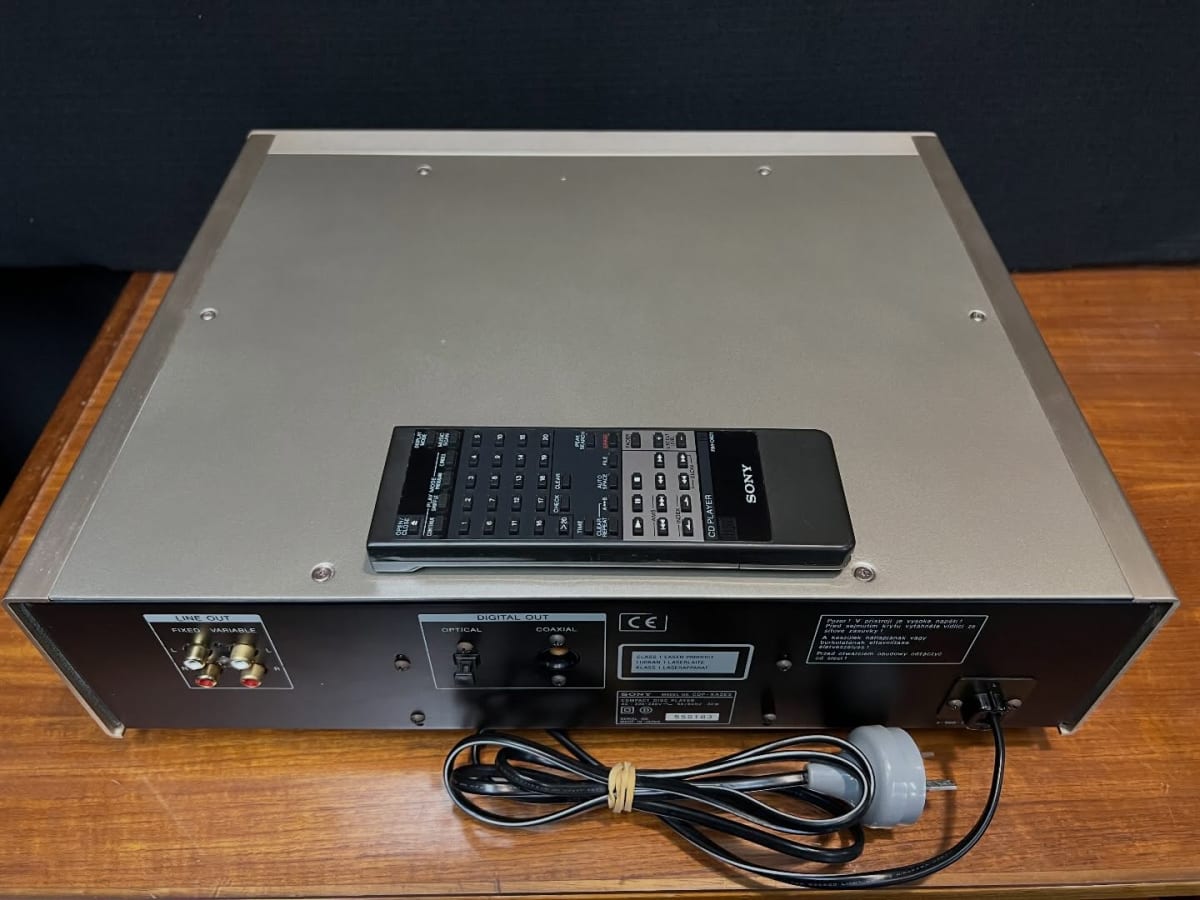

Dual Analog Line Outputs: Features gold-plated RCA outputs for standard connection (Fixed) alongside a separate volume-adjustable option (Variable).
Motor-Driven Output Knob: The front panel features a physical volume knob that physically turns when adjustments are made via the remote control.
Digital Out Control: Includes an optical TOSLINK connection with a dedicated physical switch to shut off the digital output completely when running purely analog, eliminating potential high-frequency pollution.
Full-Function Matrix Display: Features a classic fluorescent dot-matrix layout showcasing track numbers, a music calendar grid, time elapsed/remaining, and custom index settings.
