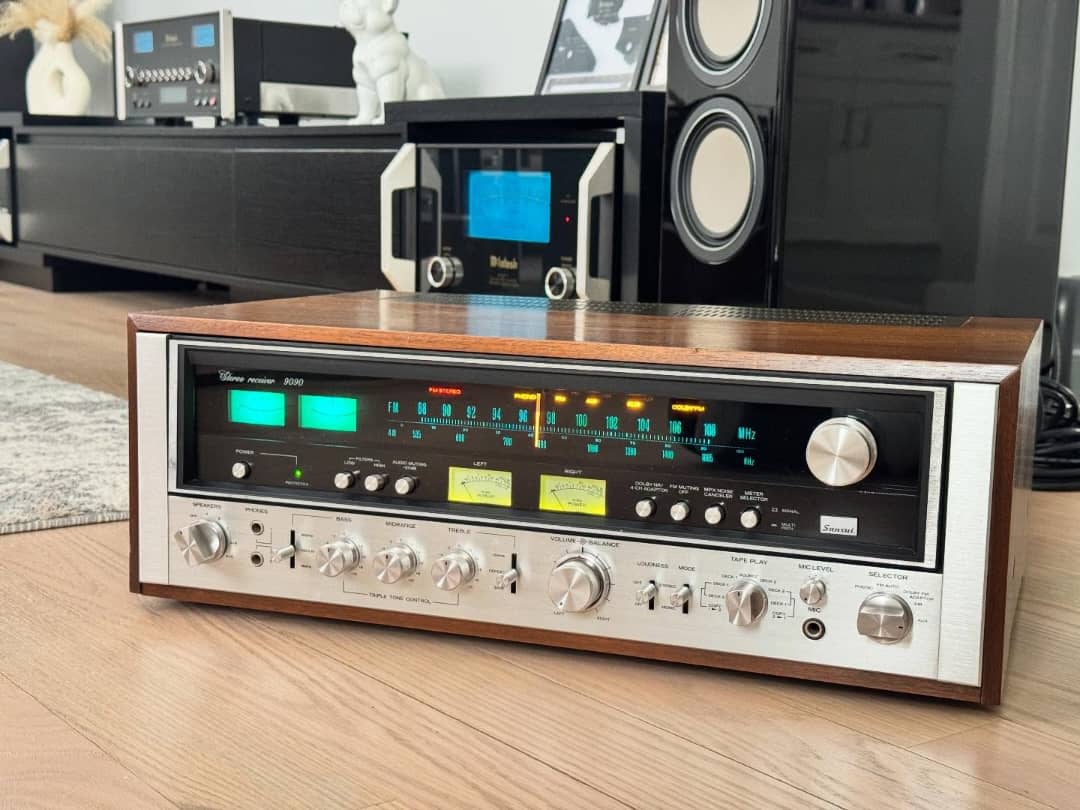

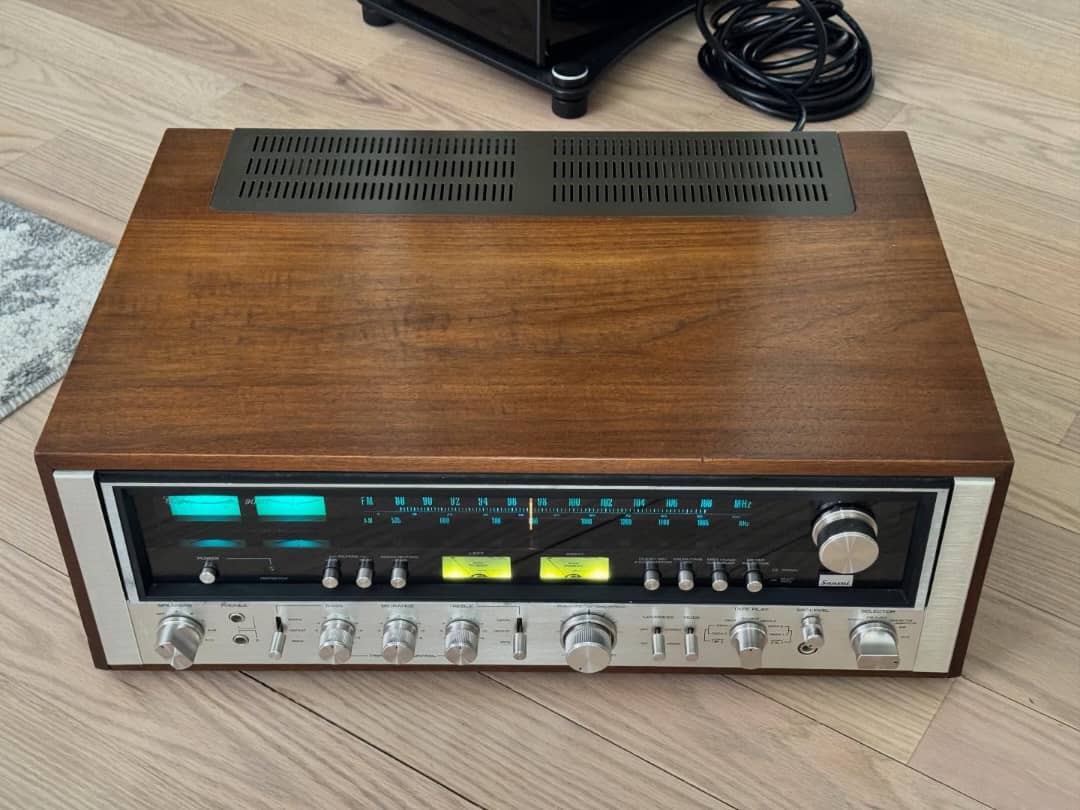

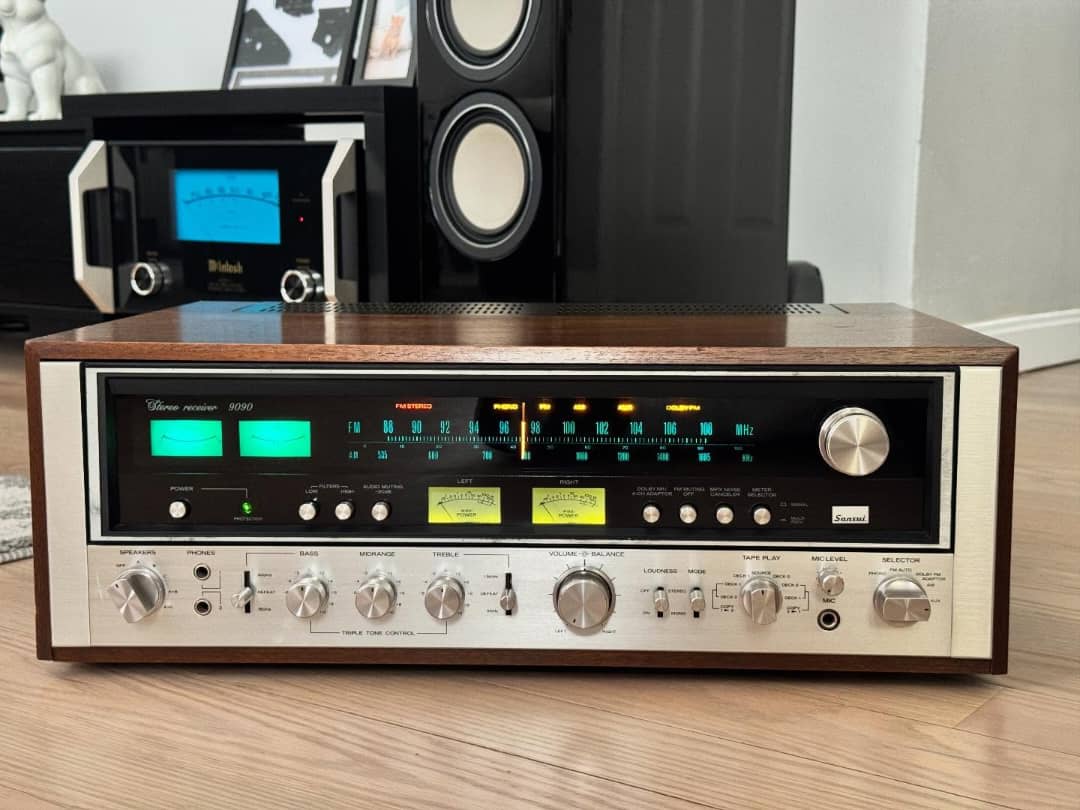

Sansui 9090 AM/FM Stereo Receiver

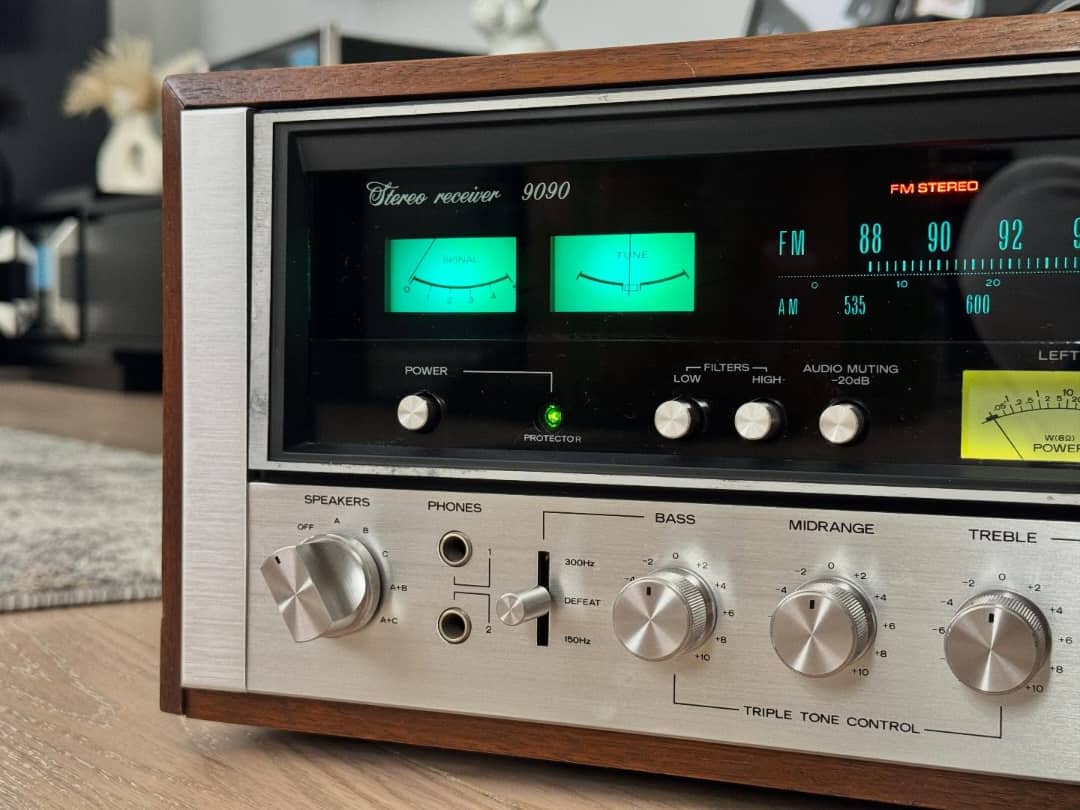

The Sansui 9090 is packed with premium, studio-grade features that made it one of the premier "monster receivers" of the mid-1970s audio boom. Below is a complete breakdown of its technical specifications, control interface, and connectivity capabilities: Power & Amplifier Performance Continuous Power Output: 110 Watts RMS per channel into 8 ohms (both channels driven at 1,000 Hz). Total Harmonic Distortion (THD): Less than 0.2% at rated output. Frequency Response: Wide-bandwidth audio delivery spanning 10 Hz to 30 kHz . Power Supply: Massive internal transformer coupled with heavy-duty filter capacitors and 8 original Sanken output transistors, providing high current delivery and a very warm, punchy sonic signature. Front Panel Display & Metering Four Analog VU Meters: Dual independent left/right power output meters (calibrated up to 200W at 8 ohms), along with dedicated Signal Strength and Center-Channel Tuning meters for precise radio capturing. Linear Dial Scale: Generously sized, warmly illuminated AM/FM tuning strip with a heavy, flywheel-coupled aluminum tuning knob for smooth operation. System Protection Indicator: Features a dual-color power LED. Upon power-on, the light flashes red for a few seconds to stabilize internal voltages before turning green, preventing dangerous current thumps from reaching your speakers. Audiophile Tone Controls & Filters Triple Tone System: Separate click-stop knobs for Bass, Midrange, and Treble equalization (instead of standard dual-band control). Selectable Tone Turnovers: Toggle switches that allow you to shift the frequency cutoff points for Bass (200Hz / 400Hz) and Treble (2.5kHz / 5kHz) to shape your acoustic environment perfectly. Tone Defeat: A dedicated bypass switch to route audio purely flat past the tone circuitry. Audio Filters & Dynamics: Includes a Low Filter (cuts turntable rumble), High Filter (cuts tape/tuner hiss), and an analog Loudness contour switch to boost bass and treble response during low-volume listening sessions. Input Matrix & Selection 5-Position Selector: Rotational control for choosing your playback source. Phono: Dedicated high-fidelity preamplifier path for vinyl record players. Aux: Auxiliary line input for external components like CD players, DACs, or modern Bluetooth streaming adapters. AM / FM / FM Auto: Radio bands with FM Multipath detection to isolate and correct antenna signal interference. Microphone Mixing: Built-in front microphone jack input with its own separate mic level control, letting you mix your voice directly over other playing audio sources. Audio Muting Switch: Quick -20dB attenuation switch to safely lower volume levels instantly without shifting the primary master volume knob. Rear Panel & Input Connectivity Triple Speaker Switching: Heavy-duty spring terminals on the back supporting up to three distinct pairs of speakers (A, B, C), switchable via a front panel rotary selector. Dual Tape Monitoring: Connectors and independent tape monitor selectors for two standalone tape decks, enabling tape-to-tape dubbing loops. Dolby FM / 4-Channel Adaptor Interface: Back panel pre-out patch loops specifically intended to pass signals out to vintage external 4-channel quadraphonic matrices or external noise reduction processors. Pre-Out / Main-In Jumpers: Metal chassis jumpers that bridge the pre-amplifier section to the power amplifier stage. Removing these lets you isolate the 9090 as either a standalone control preamp or a high-current dedicated power amplifier. Dual Headphone Sockets: Two front-panel 1/4" headphone jacks for simultaneous private monitoring.
